Product name : High Temperature Mesh Belt For Furnace
Item : 20168216932
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

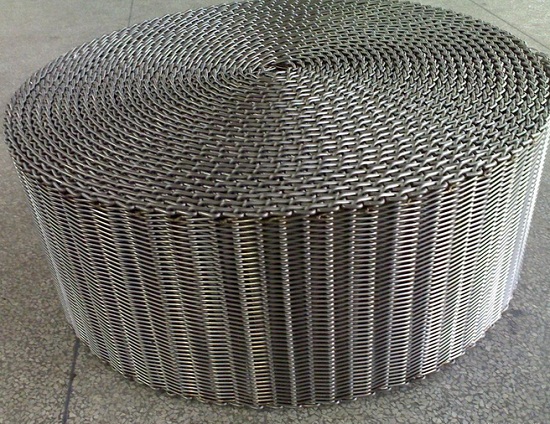

The material of mesh belt furnace conveyor is high temperature resistant stainless steel material SUS 314 and SUS310S,this furnace conveyor adopts double balanced weave type which characteristics of good flexibility,flat furface and large tensile strength.Furnace belt conveyor can be bear the max temperature at 1200 °C.
The furnace belt conveyor include chain drive type and without chain,add baffles with the same height on both sides or folding both sides is to prevent the object sliping.
Applications:
Annealing furnace for ceramics

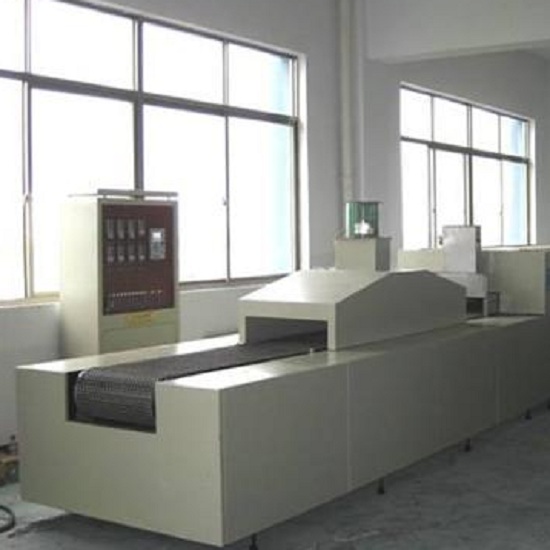

Tunnel furnace conveyor
Brazing furnace continuous conveyor belt

Chemical composition of material:
Material C % Si % Mn % Ni % Cr % Mo % Max Temperature Working
SS314 ≤0.25 ≤1.5-3.0 ≤2.0 19-22 24-26 -  1200 °C
SS310S ≤0.08 ≤1.5 ≤2.0 19-22 23-26 -  1100 °C
