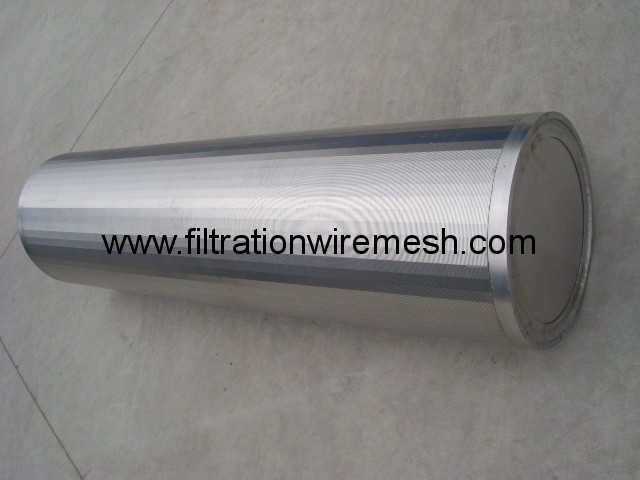

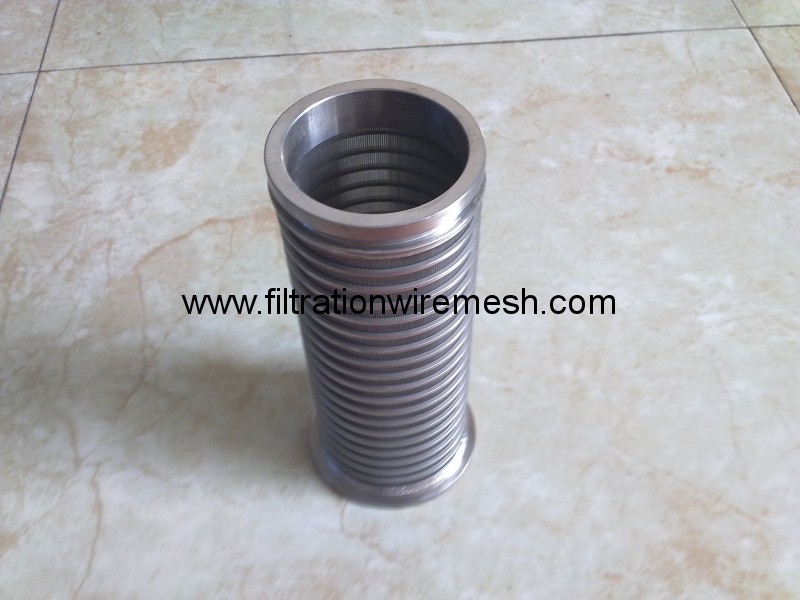

Wedge wire screen cylinder are welded by profile V-wire and support wires,it also called Johnson screen.The features are high ratio filter area because of big opening,vee wire structure are easy for automatic backwashing and avoid pipe blocking.The pressure will reduce when water flow in for greater filter area,avoid the grains of sand flow in the wedge wire tube in the high pressure conditions,so make the pipe life longer.Between the same length,diameter and slot size,wedge wire pipe is thrice than brige filter pipes.
Material: Low carbon steel wire,AISI 304,AISI 304L,AISI 316,AISI316L,high quality stainless steel wire.

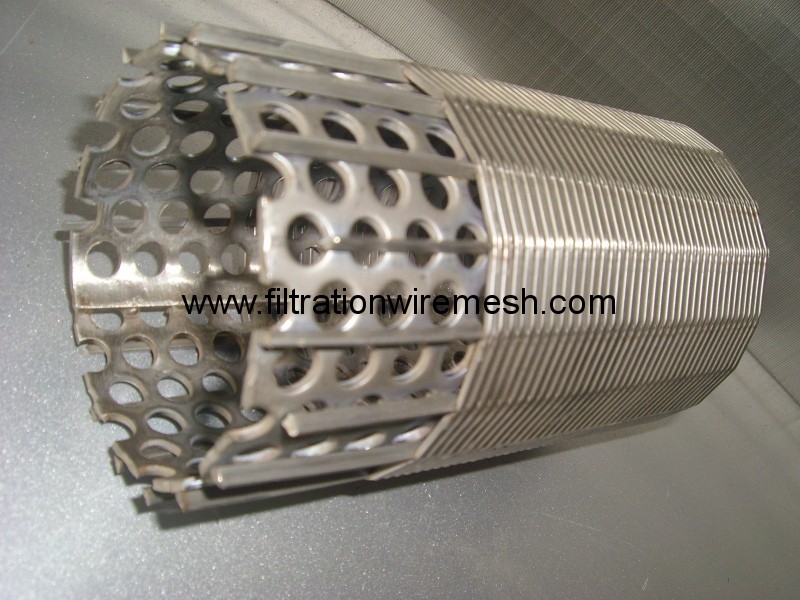

Application: With the high-precision,our wedge wire as filter elements used in water treatment industry,oil filtration,paper making,refine sugar,we have inside perforated metel and reverse wedge wire tube outside filter.
Specification:
| Diameter of cylinder |
25mm,28mm,32mm,38mm,40mm,42mm,45mm,48mm,50mm,53mm,
57mm,58mm,60mm,65mm,68mm,70mm,76mm,80mm,82mm,100mm,
108mm,120mm,133mm,159mm,196mm,219mm,240mm,325mm,400mm,
450mm,480mm,500mm,550mm,600mm,1200mm. |
| Slot size |
0.06mm,0.08mm,0.10mm,0.15mm,0.20mm,0.30mm,0.50mm,............6mm |
| Length |
20mm to 6000mm |
| Notes |
Coutom shape and specification can be made as your request. |
|
