Product name : Wire Mesh Belt Conveyor
Item : 20139422332
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:

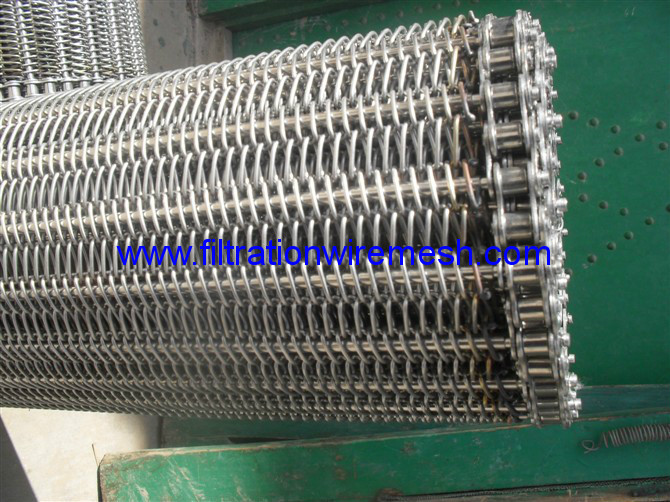

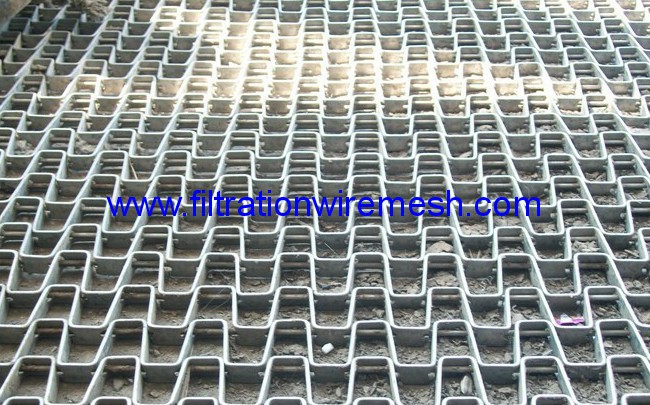

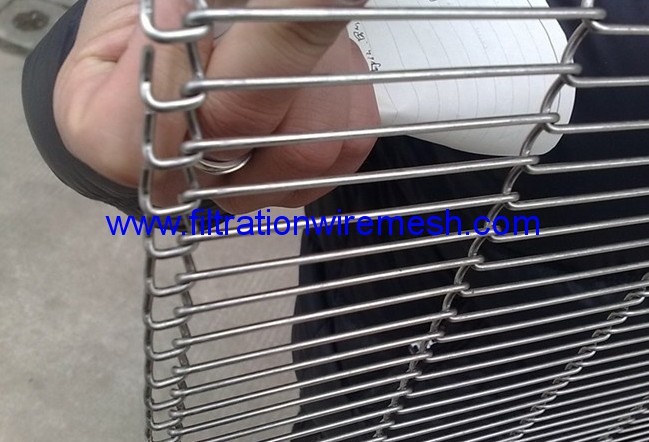

Wire mesh belt conveyor made by us include chain drive balanced weave mesh belt,flat-flex wire belt,flat wire belt.The finish of conveyor mesh belt are argon-arc welding edges,pre spiral wire insert and the big opening by firm weaving make sure heavy load.
SUS314 wire belt conveyor is the special material that can be working in the 1250 degree condition.Other common material are sus304,sus304L,sus316,sus316L,low carbon steel wire.
Applications: food process,ceramic and glass industry,chocolote,rubber industry.
Features:
Easy installation
High temperature working
Long working life

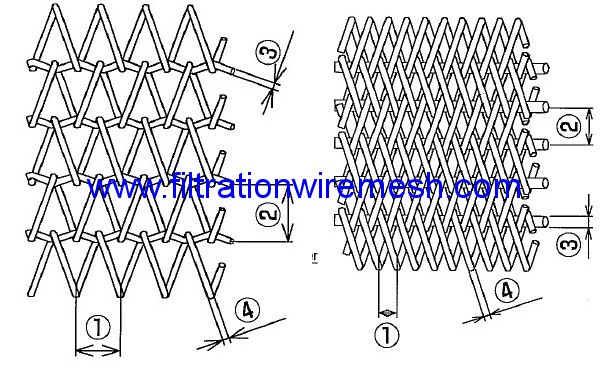

 balanced weave                        double blanced weave

1: spiral pitch  2: rod pitch  3: rod diamter 4: spiral diamter

BW-40-50-6.0-5.0                      DBW-15-30-6.0-5.0
BW-25-30-5.0-5.0                      DBW-10-22-4.0-3.4
BW-30-40-5.0-4.0                      DBW-8-17-3.4-2.6
BW-20-25-5.0-4.0                      DBW-9-15-3.0-2.6
BW-15-20-4.0-4.0                      DBW-5-10-2.0-1.8
Notes:Above are some examples specifications that we make,custom size accept.
